Subplate Mounted Valves (SPM Valves)

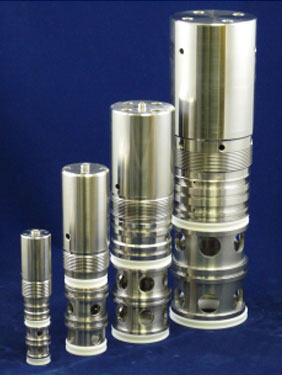

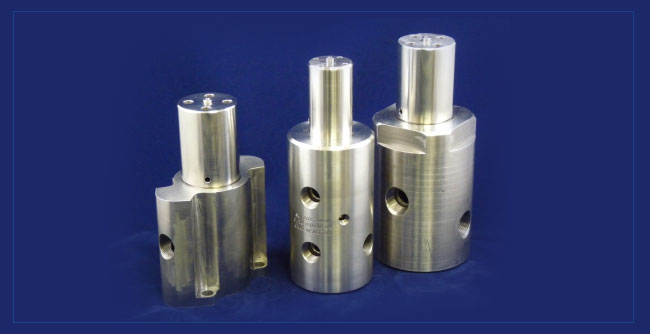

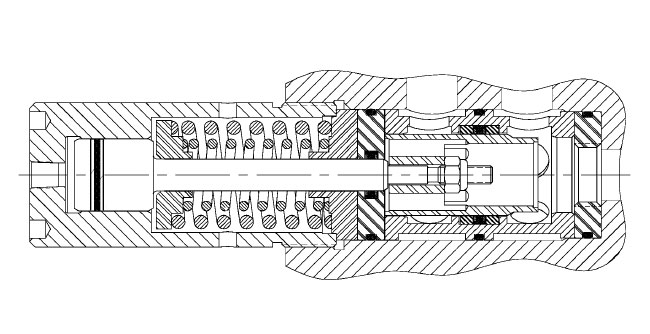

DTL offers a variety of SPM valve sizes (1/4″, ½”, ¾”, 1”, 1-1/2”) in normally closed, normally open, and bi-directional configurations. The SPM valve is a soft seated, 3-way / 2 position control valve. All valve assemblies offer a Top Pilot or Side Pilot configuration. These make for easy nesting of the valves for compact modular assemblies. SPMs are also available in complete valve assemblies as a single block, multi-cavity block, or manifold.

Our website contains our most common versions; please contact DTL Sales for your particular applications.
